Introduction: The Importance of Die Casting in Modern Manufacturing

Die casting is a popular and efficient manufacturing process used to produce complex metal parts with high precision. By injecting molten metal under high pressure into a mold, Die Casting Process allows manufacturers to create parts with intricate designs and tight tolerances. This process is widely used in industries such as automotive, aerospace, electronics, and consumer goods due to its ability to deliver durable, lightweight, and cost-effective parts quickly and efficiently.

In this article, we will explore the die casting process in detail, including its various types, advantages, materials, and applications. Additionally, we will discuss some of the challenges associated with die casting and how the industry is evolving to meet the demands of modern manufacturing.

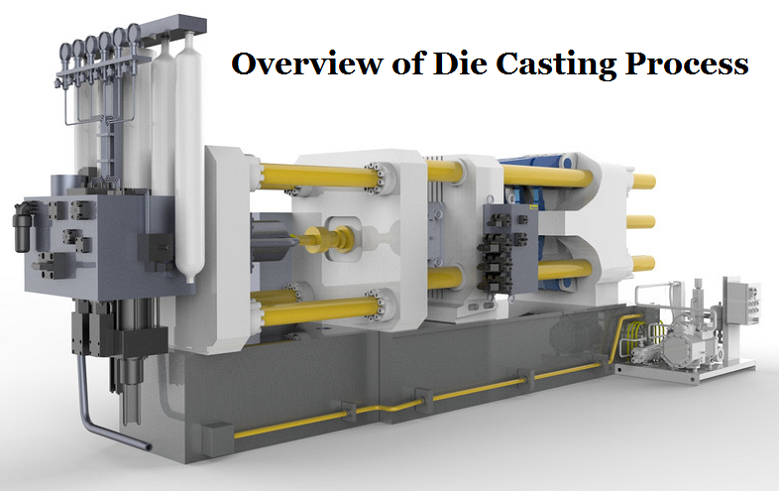

The Die Casting Process: Step-by-Step Overview

Die casting involves several key steps, each of which ensures that the final product meets the desired quality standards. Let’s break down the process from start to finish.

1. Die Preparation and Design

The first stage in the die casting process is preparing the die, which is the mold used to shape the molten metal. Dies are typically made of high-strength materials such as steel or aluminum alloys to withstand the heat and pressure generated during the casting process.

The die is designed to match the shape and dimensions of the part to be produced. Depending on the complexity of the part, the die may consist of multiple sections that come together to form the mold cavity. Cooling channels are also incorporated into the die to regulate the cooling rate during the solidification process.

A release agent is often applied to the surface of the die to help with the ejection of the part once it has cooled and solidified.

2. Melting the Metal

Once the die is ready, the next step is to melt the metal. The metals commonly used for die casting include aluminum, zinc, magnesium, and copper alloys. The metal is heated in a furnace to a temperature that allows it to become molten, typically between 400°C and 700°C, depending on the specific material being used.

The metal must be carefully monitored to ensure it reaches the correct temperature for optimal flow and filling of the die cavity. If the temperature is too low, the molten metal may not fill the mold completely, leading to defects. Conversely, if the temperature is too high, it could result in oxidation or other issues with the final product.

3. Injection of Molten Metal into the Die

The molten metal is then injected into the die under high pressure, typically between 1,000 and 30,000 psi, depending on the metal and part design. This high pressure forces the metal into all parts of the mold, including intricate details and thin sections, ensuring a precise and uniform filling of the cavity.

There are two main methods of injecting molten metal:

• Hot Chamber Die Casting: In this method, the molten metal is injected directly from a heated chamber into the die. This technique is typically used for metals with low melting points, such as zinc and lead.

• Cold Chamber Die Casting: In cold chamber die casting, the molten metal is poured into a separate chamber, where it is injected into the die under pressure. This method is typically used for higher-melting-point metals like aluminum and magnesium.

4. Cooling and Solidification

After the molten metal fills the mold, it begins to cool and solidify. Cooling is an essential part of the die casting process, as it affects the mechanical properties and appearance of the final part. The cooling time varies depending on the size and complexity of the part, as well as the type of metal used.

Cooling channels built into the die help speed up the process by circulating coolant through the mold. This ensures even cooling and prevents defects such as warping or shrinkage. The solidification time can range from a few seconds for small, thin parts to several minutes for larger, thicker sections.

5. Ejection of the Cast Part

Once the metal has fully solidified, the die halves are separated, and the cast part is ejected. The part is typically ejected using pins or other mechanical methods to avoid damaging the finished product.

After ejection, the part may require trimming to remove excess metal or flash that has formed along the seams of the die. Any remaining defects or excess material can be removed through secondary processes, such as machining or polishing.

6. Post-Processing and Quality Control

Post-processing may be necessary to further refine the part and ensure it meets the desired specifications. This can include processes such as surface finishing, heat treatment, or machining to achieve the final dimensions.

Quality control is a critical aspect of the die casting process. Parts are inspected to ensure they meet dimensional tolerances, surface finish requirements, and mechanical properties. Common quality control techniques include visual inspection, dimensional measurements, and non-destructive testing (NDT) methods such as X-ray or ultrasonic testing to detect internal defects.

Types of Die Casting Methods

Die casting comes in two primary methods, each with its own advantages and applications:

1. Hot Chamber Die Casting

Hot chamber die casting is typically used for metals with low melting points, such as zinc, lead, and tin. In this method, the molten metal is injected into the mold from a chamber that is kept at a high temperature. This results in a faster injection process and is well-suited for high-volume production of smaller, less complex parts.

This method is particularly efficient for metals that do not require high levels of thermal management, as the chamber and the die are heated together. However, hot chamber die casting is not suitable for metals with high melting points, such as aluminum and magnesium.

2. Cold Chamber Die Casting

Cold chamber die casting is used for metals with higher melting points, such as aluminum, magnesium, and copper alloys. In this method, the molten metal is poured into a separate chamber before being injected into the die. Cold chamber die casting is slower than hot chamber casting, but it allows for the use of a wider range of materials, making it suitable for more demanding applications.

Cold chamber die casting is commonly used in industries like automotive and aerospace, where high-strength, lightweight parts are required.

Advantages of Die Casting

Die casting offers numerous advantages that make it a popular choice for manufacturers seeking precision, efficiency, and cost-effectiveness:

1. Precision and Accuracy

Die casting allows for the production of parts with tight tolerances and high dimensional accuracy, often within ±0.1mm. The high-pressure injection process ensures that the molten metal fills the mold completely, capturing even the finest details of the design.

2. Complex Shapes and Thin Walls

One of the key advantages of die casting is its ability to produce parts with complex geometries and thin walls. Parts can be made with intricate features, such as holes, ribs, and threads, in a single casting process. This makes die casting ideal for producing lightweight, yet strong components for industries like automotive and aerospace.

3. High-Speed Production

The automation involved in die casting enables fast production cycles, allowing manufacturers to produce large quantities of parts in a short amount of time. This makes die casting particularly cost-effective for high-volume manufacturing.

4. Minimal Waste

Die casting produces minimal material waste since only the necessary amount of molten metal is injected into the mold. Any excess metal can be recycled and reused in the next casting cycle. This makes die casting an environmentally friendly option compared to other manufacturing methods.

5. Strength and Durability

Die cast parts are strong and durable due to the high pressure used during injection. The process produces parts with a dense, fine-grain structure, making them resistant to wear, fatigue, and corrosion.

Applications of Die Casting

Die casting is used in a wide variety of industries to produce high-quality, precision parts. Some of the most common applications include:

1. Automotive Industry

Die casting is widely used in the automotive industry to produce engine blocks, transmission housings, wheels, and other components. The process’s ability to produce lightweight, durable parts is essential for improving fuel efficiency and performance.

2. Aerospace

In the aerospace industry, die casting is used to manufacture parts such as engine components, structural elements, and housings for sensitive equipment. The need for lightweight yet strong parts makes die casting an ideal solution for this industry.

3. Electronics

Die casting is also commonly used in the electronics industry to produce enclosures, heat sinks, and components for devices such as smartphones, computers, and power supplies. The durability and heat dissipation properties of die-cast parts are ideal for protecting electronic components.

4. Consumer Goods

From kitchen appliances to power tools, die casting is used to produce a wide range of consumer goods. The ability to create precise, aesthetically pleasing, and functional parts makes die casting a popular choice for manufacturers of everyday products.

Challenges of Die Casting

Despite its many advantages, die casting does have some challenges, including:

1. Initial Tooling Costs

The cost of designing and manufacturing the die can be high, especially for complex parts. However, this cost is offset by the speed and efficiency of the casting process during mass production.

2. Material Limitations

Not all materials are suitable for die casting. Metals with very high melting points, such as steel, cannot be used in this process, limiting the range of materials available for certain applications.

3. Defects and Porosity

Although die casting produces high-quality parts, defects such as porosity, cracks, or surface imperfections can occur. These defects must be closely monitored and addressed to ensure the final product meets quality standards.

Conclusion: The Future of Die Casting

Die casting continues to be a vital manufacturing process in industries requiring high-precision, durable parts. With advancements in materials, automation, and process control, the die casting industry
